AWG ERIF Test Case 11: *CONSTRAINED Keyword Test Case

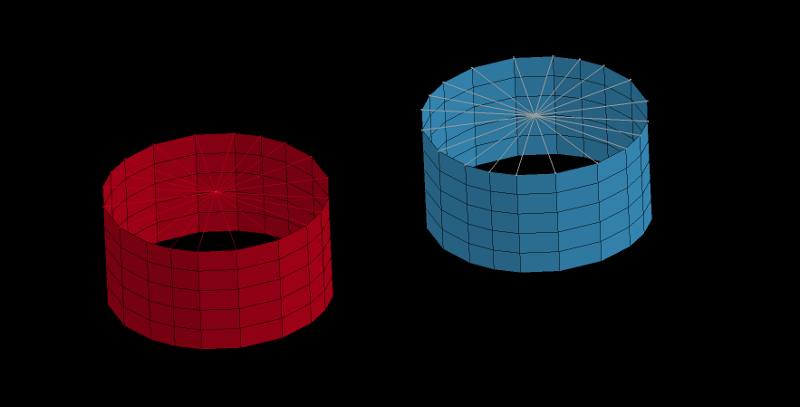

Image: AWG_ERIF_Test_Case_11_model_image
Description: Comparison of results from different cpu architectures for a basic model containing *CONSTRAINED_INTERPOLATION and *CONSTRAINED_NODAL_RIGID_BODY keyword.
Status: Accepted and currently part of the AWG Test Suite
Classification: Example
Input Deck: Test Case 11-1 Input
Test Case 11-2 Input
Keywords: *CONSTRAINED_INTERPOLATION
*CONSTRAINED_NODAL_RIGID_BODY
...
Units: in (length), s (time), lbf-s2/in (mass), psi (stress), lbf-in (energy)
Model Data: 242 Nodes, 200 shells
Run Time: approx. total CPU time < 1 min. (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 4 cpu's)
Earliest Version : LS-DYNA® R7.0
Test Case Details and Results: Test Case 11, Documentation and Results for LS-DYNA R14.1.1-4-gaf1eb871e8
Test Case 11, Documentation and Results for LS-DYNA R12.2-223-gcef54b474c
Test Case 11, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c
Test Case 11, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d
Test Case 11, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac
Test Case 11, Documentation and Results for LS-DYNA R13.1 Revision 93-g6e31b592d7
Test Case 11, Documentation and Results for LS-DYNA R13.0 Revision 365-gf8a97bda2a
Test Case 11, Documentation and Results for LS-DYNA R12.1 Revision 128-g57c3366e82
Test Case 11, Documentation and Results for LS-DYNA R12.0 Revision 148708
Test Case 11, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4
Test Case 11, Documentation and Results for LS-DYNA R11.1 Revision 139325
Test Case 11, Documentation and Results for LS-DYNA R10.2 Revision 134743
Test Case 11, Documentation and Results for LS-DYNA R11.0 Revision 130010
Test Case 11, Documentation and Results for LS-DYNA R9.3 Revision 126955
Test Case 11, Documentation and Results for LS-DYNA R10.1 Revision 123136
Test Case 11, Documentation and Results for LS-DYNA R9.2 Revision 118235
Test Case 11, Documentation and Results for LS-DYNA R10.0 Revision 116539
Test Case 11, Documentation and Results for LS-DYNA R9.1 Revision 113467
Test Case 11, Documentation and Results for LS-DYNA R9.0 Revision 108899
Test Case 11, Documentation and Results for LS-DYNA R8.0.0 Revision 96167
Test Case 11, Documentation and Results for LS-DYNA R7.1.0 Revision 87770
Bug Issues Found and Fixed: BUG 944140 (BUG 17954) in subcase 11.2: Y-rotation of node 2000 changed. Affected releases R12.1, 13.0, and 13.1. Remains Open.
