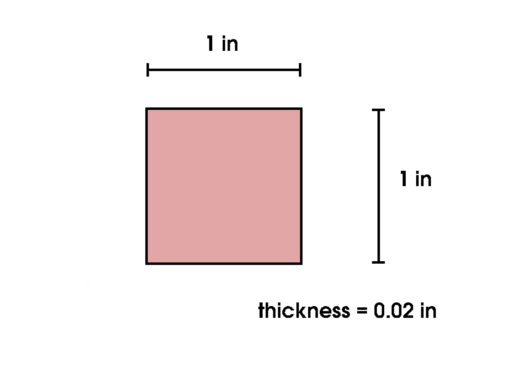

| Description: | This Test Case contains eight sub test cases which exercise eight different loading conditions on a single square patch of Kevlar fabric:
|
| | - Tension in global x direction
|
| | - Tension in global y direction
|
| | - Compression in global x direction
|
| | - Compression in global y direction
|
| | - Tension in global x direction, material axis rotated by 45 degrees
|
| | - Bi-axial tension in global x and y direction
|
| | - Nonuniform bi-axial tension in global x and y direction
|
| | - Bi-axial compression in global x and y direction
|
| Status: | Accepted and currently part of the AWG Test Suite
|
| Classification: | Example
|
| Reference Reports: | Explicit Finite Element Modeling of Multilayer Composite Fabric for Gas Turbine Engine Containment Systems
|
| | ASU Material Modeling and Numerical Simulations
|
| | ASU Material Fabric Material Tests
|
| | ASU Final Report
|
| Input Deck: | Test Case 13 Input
|
| Keywords: | *MAT_DRY_FABRIC (ASU material model Version 1.3)
|
| | ...
|
| Units: | in (length), ms (time), Mlbf-ms2/in (mass), Mlbf (force), Mpsi (stress), Mlbf-in (energy)
|
| Model Data: | 4 nodes / 1 shell element / 1shell material / 1 part
|
| Run Time: | approx. total CPU time = 5 seconds (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 1 cpu's)
|
| Earliest Version : | LS-DYNA® R8.0.0
|
| Test Case Details and Results: | Test Case 13, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c
|
| | Test Case 13, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d
|
| | Test Case 13, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac
|
| | Test Case 13, Documentation and Results for LS-DYNA R13.1 Revision 93-g6e31b592d7
|
| | Test Case 13, Documentation and Results for LS-DYNA R13.0 Revision 365-gf8a97bda2a
|
| | Test Case 13, Documentation and Results for LS-DYNA R12.1 Revision 128-g57c3366e82
|
| | Test Case 13, Documentation and Results for LS-DYNA R12.0 Revision 148708
|
| | Test Case 13, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4
|
| | Test Case 13, Documentation and Results for LS-DYNA R11.1 Revision 139325
|
| | Test Case 13, Documentation and Results for LS-DYNA R10.2 Revision 134743
|
| | Test Case 13, Documentation and Results for LS-DYNA R11.0 Revision 130010
|
| | Test Case 13, Documentation and Results for LS-DYNA R9.3 Revision 126955
|
| | Test Case 13, Documentation and Results for LS-DYNA R10.1 Revision 123136
|
| | Test Case 13, Documentation and Results for LS-DYNA R9.2 Revision 118235
|
| | Test Case 13, Documentation and Results for LS-DYNA R10.0 Revision 116539
|
| | Test Case 13, Documentation and Results for LS-DYNA R9.1 Revision 113467
|
| | Test Case 13, Documentation and Results for LS-DYNA R9.0 Revision 108899
|
| | Test Case 13, Documentation and Results for LS-DYNA R8.0.0 Revision 96167
|
| Bug Issues Found and Fixed: | None
|
