AWG ERIF Test Case 2.1: Fan Blade-Off Rig Test, Generic Fan Rig Model

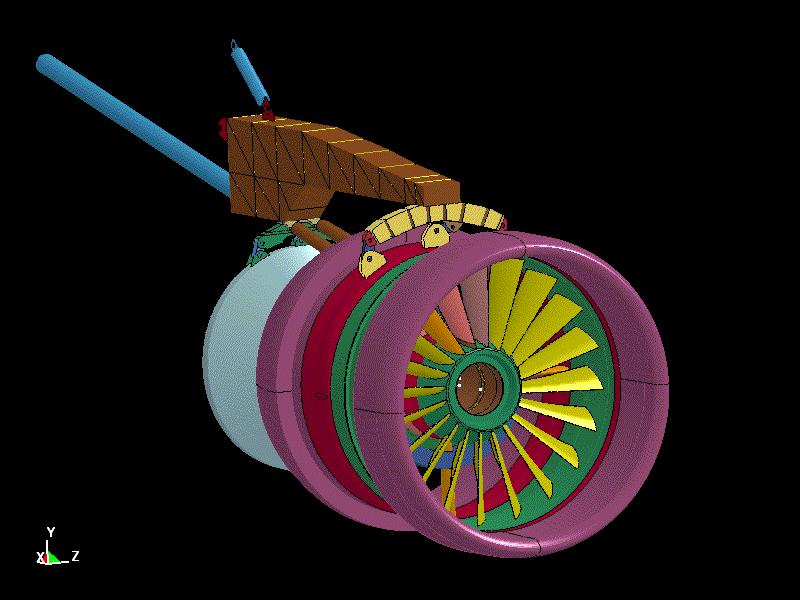

| Image: | |

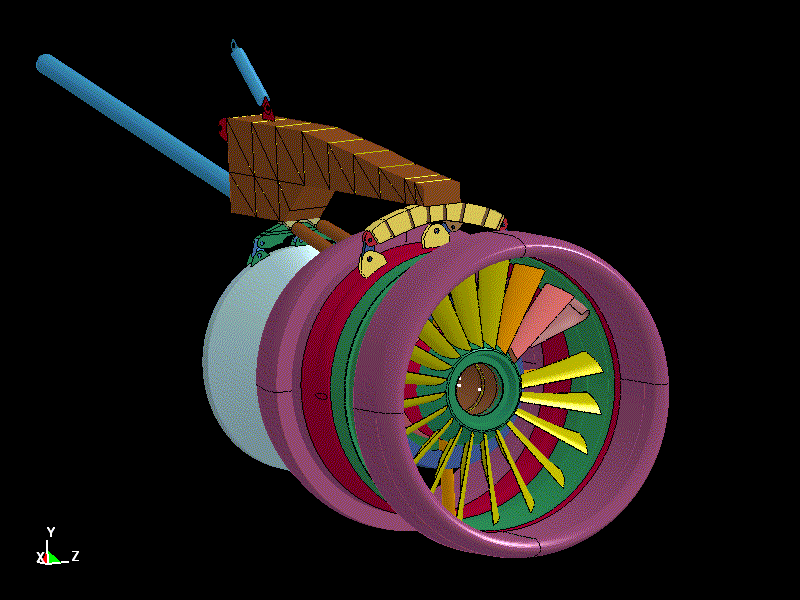

| Animation: | Test Case 2.1 Animation |
| Description: | This Test Case is an example of a fan blade-off (FBO) rig test. The model is a complete rig discretized with shell and solid elements. |
| Status: | Accepted and currently part of the AWG Test Suite |
| Classification: | Example |
| Reference Report: | Fan Blade-out Model Development |
| Input Deck: | Test Case 2.1 |
| Test Case 2.1 Revision 001 Input (Original input deck model corresponding to the FAA Reference Report) | |
| Input Deck 12/07/2020 Update: | Aluminum 2024 material model updated to Version 2.2 |
| Keywords: | *ELEMENT_SHELL |
| *ELEMENT_SOLID | |
| *CONTACT_ERODING_SINGLE_SURFACE_ID | |
| *CONSTRAINED_JOINT_CYLINDRICAL_ID | |
| *CONSTRAINED_JOINT_SPHERICAL_ID | |
| *CONSTRAINED_JOINT_REVOLUTE_ID | |
| *MAT_TABULATED_JOHNSON_COOK | |
| ... | |
| Units: | in (length), s (time), lbf-s2/in (mass), psi (stress), lbf-in (energy) |
| Model Data: | Approx 1566914 nodes, 364482 shell elements, 944676 solid elements, 40 parts |
| Run Time: | Approx. total CPU time = 16 hours 40 minutes (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 12 cpu's) |
| Earliest Version: | LS-DYNA® R8.0 |
| Test Case Details and Results | |
| Test Case 2.1, Documentation and Results for LS-DYNA R16.0-563-g2adec5a05 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R14.1.1-8-g2ef819c24f | |
| Test Case 2.1, Documentation and Results for LS-DYNA R13.2-28-gcc52f96e9d | |
| Test Case 2.1, Documentation and Results for LS-DYNA R14.1.1-4-gaf1eb871e8 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R12.2-223-gcef54b474c | |
| Test Case 2.1, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c | |
| Test Case 2.1, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d | |
| Test Case 2.1, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac | |
| Test Case 2.1, Documentation and Results for LS-DYNA R13.1 Revision 98-gf37f544487 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R13.0 Revision 365-gf8a97bda2a | |
| Test Case 2.1, Documentation and Results for LS-DYNA R12.1 Revision 204-g810450fa20 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R12.0 Revision 148708 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4 | |
| Bug Issues Found and Fixed: | BUG 16376: error termination with floating invalid in f3dm224 (MAT_224 Version 2.2 for aluminum material model) was fixed in revisions R11-143806, R12-143804, and Dev-143804 |
Test Case 2.1 History: 03/14/2019 Update
| Input Deck: | Test Case 2.1 Input |
| Input Deck Update: | Aluminum 2024 material model updated to Version 2.1 |
| Test Case Details and Results: | Test Case 2.1, Documentation and Results for LS-DYNA R11.1 Revision 139325 |
| Test Case 2.1, Documentation and Results for LS-DYNA R10.2 Revision 134743 | |
| Bug Issues Found and Fixed: | None |
Test Case 2.1 History: 11/06/2018 Update
| Input Deck: | Test Case 2.1 Input |
| Input Deck Update: | Aluminum 2024 material model updated to Version 2.0 |
| Test Case Details and Results: | Test Case 2.1, Documentation and Results for LS-DYNA R11.0 Revision 130010 |
| Bug Issues Found and Fixed: | None |
Test Case 2.1 History: 03/10/2015 Original Input Deck
| Input Deck: | Test Case 2.1 Input |
| Test Case Details and Results: | Test Case 2.1, Documentation and Results for LS-DYNA R9.3 Revision 126955 |
| Test Case 2.1, Documentation and Results for LS-DYNA R10.1 Revision 123136 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R9.2 Revision 118235 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R10.0 Revision 116539 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R9.1 Revision 114087 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R9.0 Revision 108899 | |
| Test Case 2.1, Documentation and Results for LS-DYNA R8.0.0 Revision 96167 | |
| Bug Issues Found and Fixed: | Bug 7981 (LS-PrePost) Request to not output optional cards of *MAT_ADD_EROSION for Output Version: V971_R4 - fixed 11/27/2012 |
