AWG CI Test Case 7: Compression Member - Forward Leg, Leg Spreader Bar

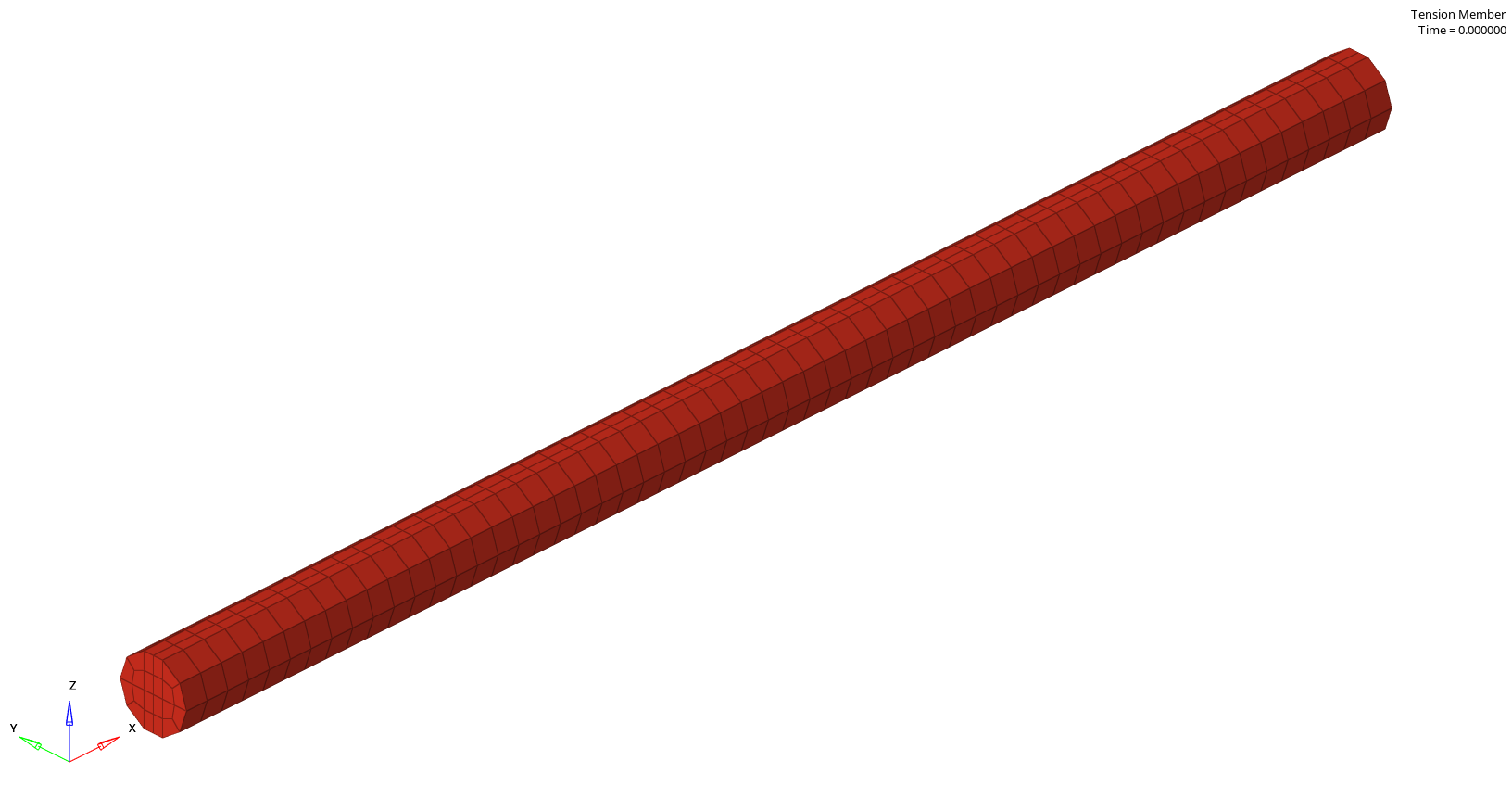

| Image: | |
| Animation: | Test Case 7 Animation |
| Description: | The objective of this test case is twofold: to simulate a compressive load on a rod that is representative of a forward leg, leg spreader bar or a portion of an actuator that is subjected to tensile, compressive, and bending loads; and to simulate a buckling test with a transverse load applied in addition to the compressive load. |
| Status: | Accepted and currently part of the AWG CI Test Suite |
| Classification: | Application benchmark |
| Input Deck: | Test Case 7 Input |
| Keywords: | *ELEMENT_SOLID |
| *MAT_ELASTIC | |
| *LOAD_NODE | |
| Units: | mm (length), ms (time), kg (mass), kN (force) |
| Model Data: | 1160 solid elements, 1593 nodes, 1 material, 1 part |
| Run Time: | Approx. total CPU time = 40s (Intel® Xeon® CPU E5-2680 @ 2.40GHz / MPP / 4 cpu) |
| Earliest Version : | LS-DYNA® R14.0 |
| Test Case Details and Results | |
| Test Case 7, Documentation and Results for LS-DYNA R16.0-563-g2adec5a05 | |
| Test Case 7, Documentation and Results for LS-DYNA R14.1.1-8-g2ef819c24f | |
| Test Case 7, Documentation and Results for LS-DYNA R13.2-28-gcc52f96e9d | |
| Test Case 7, Documentation and Results for LS-DYNA R14.1.1-4-gaf1eb871e8 | |
| Test Case 7, Documentation and Results for LS-DYNA R12.2-239-gd2e8ba324b | |
| Test Case 7, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c | |
| Test Case 7, Documentation and Results for LS-DYNA R12.2 Revision 0-g0294a6e436 | |
| Test Case 7, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac | |
| Test Case 7, Documentation and Results for LS-DYNA R14.0 Revision 114-gae4816ef53 | |
| Bug Issues Found and Fixed: | None |
