AWG ERIF Test Case 1.2: Ballistic Impact - Ti 6-4 Projectile (solid elements) Impacts a 304L SS (Solid Elements) Plate

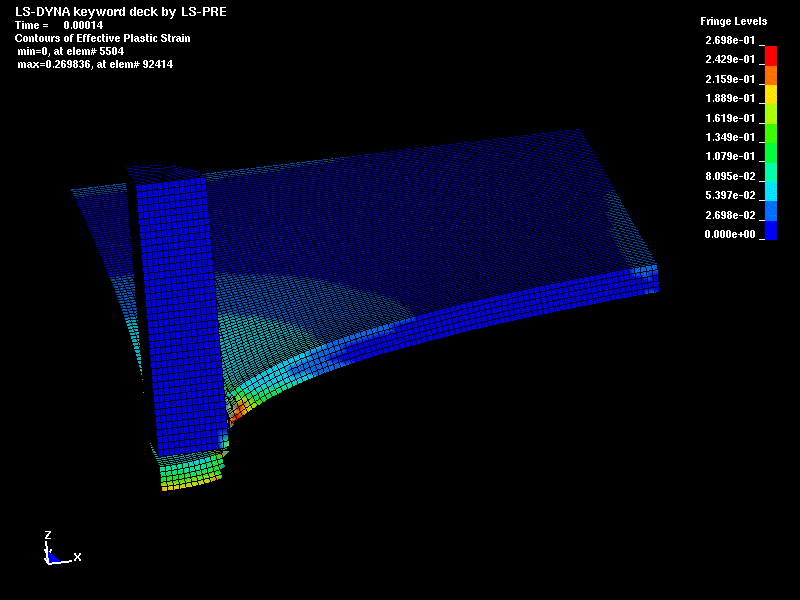

| Image: | |

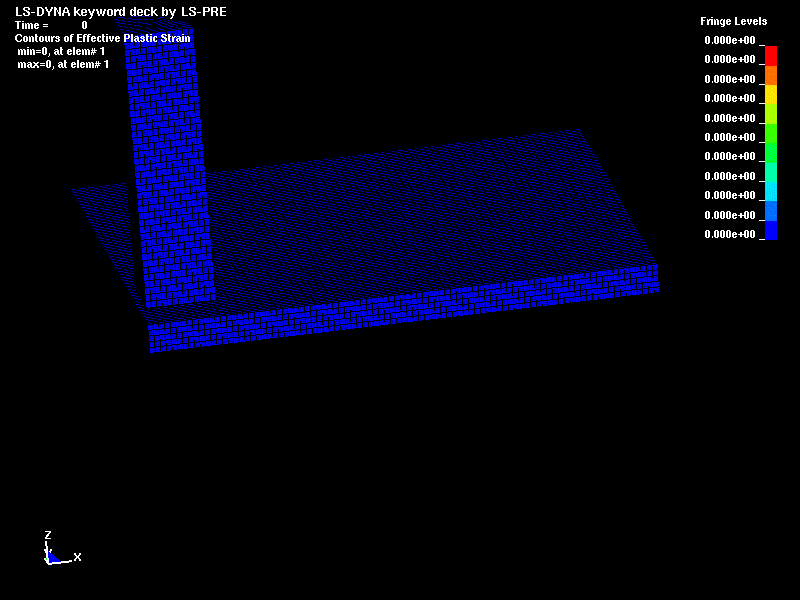

| Animation: | Test Case 1.2 Animation |
| Description: | Goal of Test Case 1.2 is to assess the reliability and consistency of LS-DYNA® in lagrangian impact simulations on solids. This is achieved by testing various material models, element formulations, contact algorithms, etc. As a reference, ballistic data for this problem were provided by NASA Glenn Research Center. Tested are cases for a 7"x7"x0.04" 304L SS steel plate. For each of the 11 sub cases, two simulations are performed to verify that the ballistic limit from the simulations is consistent with the experimental. Simulation at 95% and at 105% of the experimental ballistic velocity are performed. Also NASA Glenn Research Center provided input data for various materials and material models. In order to ensure cross-platform consistency, these cases are run on various platforms supported by LS-DYNA®. |
| Status: | Accepted and currently part of the AWG Test Suite |
| Classification: | Validation |
| Input Decks: | Test Case 1.2 Input |
| Input Deck 07/07/2017 Update: | The MPP bucketsort frequency was set to 25 (the default is 200). |
| Keywords: | *DEFINE_BOX |
| *ELEMENT_SOLID | |
| *HOURGLASS | |
| *MAT_024 (PIECEWISE_LINEAR_PLASTICITY), VP=0,1 | |
| *MAT_015 (JOHNSON_COOK), VP=0,1 | |
| *MAT_081 (PLASTICITY_WITH_DAMAGE) | |
| *MAT_123 (MODIFIED_PIECEWISE_LINEAR_PLASTICITY), VP=0,1 | |
| ... | |
| Units: | in (length), s (time), lbf-s2/in (mass), psi (stress), lbf-in (energy) |
| Model Data: | approx. 59296 Nodes, 47165 solid elements / 2 solid materials, 2 parts |
| Run Time: | approx. total CPU time = 8 minutes 57 seconds (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 4 cpu's) |
| Earliest Version: | LS-DYNA® R4.2.1 |
| Test Case Details and Results: | Test Case 1.2, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c |
| Test Case 1.2, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d | |
| Test Case 1.2, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac | |
| Test Case 1.2, Documentation and Results for LS-DYNA R13.1 Revision 93-g6e31b592d7 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R13 Revision 365-gf8a97bda2a | |
| Test Case 1.2, Documentation and Results for LS-DYNA R12.1 Revision 128-g57c3366e82 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R12.0 Revision 148708 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R11.1 Revision 139325 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R10.2 Revision 134743 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R11.0 Revision 130010 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R9.3 Revision 126955 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R10.1 Revision 123136 | |
| Test Case 1.2, Documentation and Results for LS-DYNA R10.0 Revision 118020 | |
| Bug Issues Found and Fixed: | BUG 18305: Error in energy calculation for MAT_024 in releases R12.1, R13.0, R13.1, R12.2, R14.0 |
| BUG 18070: The results were changed by a bug fix in MAT_024 because it sometimes interpolated the strain rate between the wrong curves. Fixed in R14.0 and R12.2. |
Test Case 1.2 History: 07/27/2011 Original Input Deck
