AWG CI Test Case 8: Lug Joint

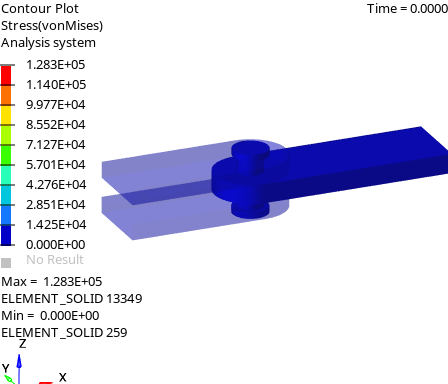

| Image: | |
| Animation: | Test Case 8 Animation |
| Description: | The purpose of this test case is to evaluate the forces exerted in lug joints. This type of joint is a representation of a link or connection between multiple seat parts such as a seatback and seat pan or seat legs and seat track attachments. |
| Status: | Accepted and currently part of the AWG CI Test Suite |
| Classification: | Application benchmark |
| Input Deck: | Test Case 8 Input |
| Keywords: | *ELEMENT_SOLID |
| *MAT_ELASTIC | |
| *MAT_PIECEWISE_LINEAR_PLASTICITY | |
| *BOUNDARY_PRESCRIBED_MOTION | |
| Units: | in (length), s (time), lbf-s2/in (mass), lbf (force) |
| Model Data: | 32776 solid elements, 41115 nodes, 2 materials, 3 parts |
| Run Time: | Approx. total CPU time = 2500s (Intel® Xeon® CPU E5-2680 @ 2.40GHz / MPP / 4 cpu) |
| Earliest Version : | LS-DYNA® R14.0 |
| Test Case Details and Results | |
| Test Case 8, Documentation and Results for LS-DYNA R16.0-563-g2adec5a05 | |
| Test Case 8, Documentation and Results for LS-DYNA R14.1.1-8-g2ef819c24f | |
| Test Case 8, Documentation and Results for LS-DYNA R13.2-28-gcc52f96e9d | |
| Test Case 8, Documentation and Results for LS-DYNA R14.1.1-4-gaf1eb871e8 | |
| Test Case 8, Documentation and Results for LS-DYNA R12.2-239-gd2e8ba324b | |
| Test Case 8, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c | |
| Test Case 8, Documentation and Results for LS-DYNA R12.2 Revision 0-g0294a6e436 | |
| Test Case 8, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac | |
| Test Case 8, Documentation and Results for LS-DYNA R14.0 Revision 114-gae4816ef53 | |
| Bug Issues Found and Fixed: | None |
