AWG ERIF Test Case 1.1: Ballistic Impact - Ti 6-4 Projectile (Solid Elements) Impacts a 304L SS (Shell Elements) Plate

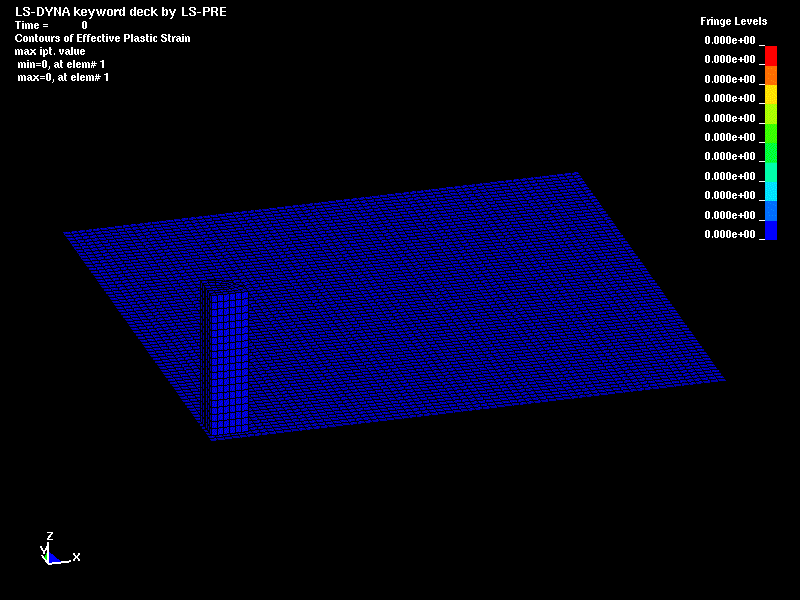

| Image: | |
| Animation: | Test Case 1.1 Animations |
| Description: | The goals of Test Case 1.1 are examples to assess the reliability and consistency of LS-DYNA® in lagrangian impact simulations on shells. This is achieved by testing various material models, element formulations, contact algorithms, etc. As a reference, ballistic data for this problem were provided by NASA Glenn Research Center. Tested are cases for a 7"x7"x0.04" 304L SS steel plate. For each of the 12 cases, two simulations are performed to verify that the ballistic limit from the simulations is consistent with the experimental result. One simulation at 95% and one at 105% of the experimental ballistic velocity. Also NASA Glenn Research Center provided input data for various materials and material models. In order to ensure cross-platform consistency, these cases are run on several platforms supported by LS-DYNA®. |
| Status: | Accepted and currently part of the AWG Test Suite |
| Classification: | Validation |
| Input Deck: | Test Case 1.1 Input |
| Keywords: | *CONTROL_SHELL, BWC=1,2, PROJ=0,1 |
| *DEFINE_BOX | |
| *ELEMENT_SHELL | |
| *HOURGLASS | |
| *MAT_024 (PIECEWISE_LINEAR_PLASTICITY), VP=0,1 | |
| *MAT_015 (JOHNSON_COOK), VP=0,1 | |
| *MAT_081 (PLASTICITY_WITH_DAMAGE) | |
| *MAT_123 (MODIFIED_PIECEWISE_LINEAR_PLASTICITY), VP=0,1 | |
| ... | |
| Units: | in (length), s (time), lbf-s2/in (mass), psi (stress), lbf-in (energy) |
| Model Data: | approx. 5944 Nodes, 4900 shell elements / 1 shell material, 640 solid elements / 1 solid material, 2 parts |
| Run Time: | approx. total CPU time = 58 seconds (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 2 cpu's) |
| Earliest Version: | LS-DYNA® R4.2.1 |
| Test Case Details and Results: | Test Case 1.1, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c |
| Test Case 1.1, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d | |
| Test Case 1.1, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac | |
| Test Case 1.1, Documentation and Results for LS-DYNA R13.1 Revision 93-g6e31b592d7 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R13.0 Revision 365-gf8a97bda2a | |
| Test Case 1.1, Documentation and Results for LS-DYNA R12.1 Revision 128-g57c3366e82 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R12.0 Revision 148708 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R11.1 Revision 139325 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R10.2 Revision 134743 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R11.0 Revision 130010 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R9.3 Revision 126955 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R10.1 Revision 123136 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R9.2 Revision 118235 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R10.0 Revision 116539 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R9.1 Revision 113467 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R9.0 Revision 108899 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R8.0.0 Revision 96167 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R7.1.0 Revision 87770 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R7.0.0 Revision 79069 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R6.1 Revision 74159 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R6.0.0 Revision 71381 | |
| Test Case 1.1, Documentation and Results for LS-DYNA R5.1.1 Revision 67628 | |
| Bug Issues Found and Fixed: | BUG 18070: The results were changed by a bug fix in MAT_024 because it sometimes interpolated the strain rate between the wrong curves. Fixed in R14.0 and R12.2. |
