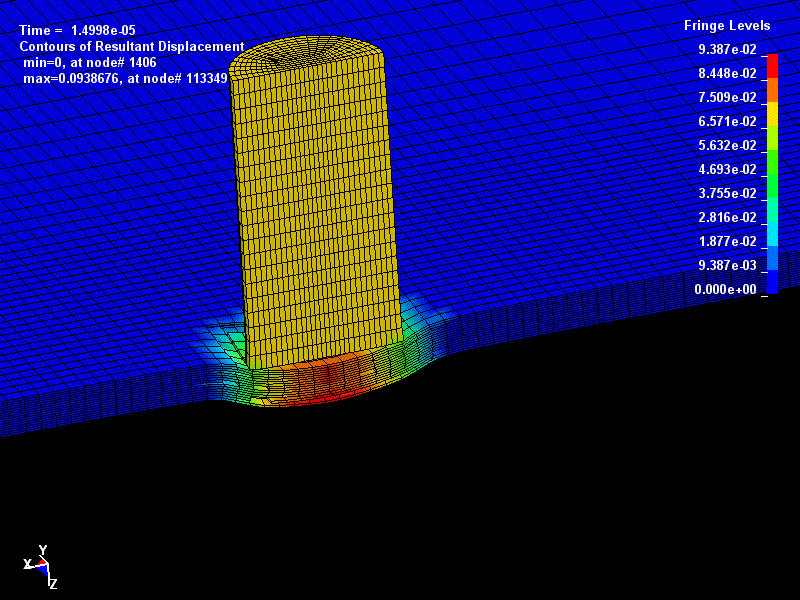

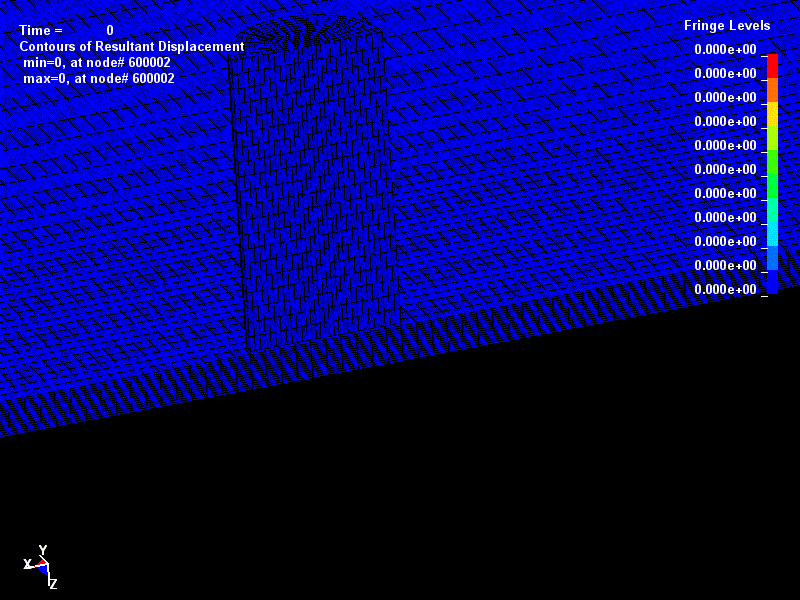

| Description: | This test case, provided by Boeing, is a ballistic impact of a steel projectile on a composite BMS8-212 target, which is an outdated Boeing military material in a 16-ply laminated composite lay-up. Solid elements ELFORM=1 and MAT_162 (*MAT_COMPOSITE_DMG_MSC) are used to model the composite. MAT_162 requires a separate license from Material Science Corporation. Delamination is modeled by the use of contact *CONTACT_AUTOMATIC_SURFACE_TO_SURFACE_TIEBREAK, OPTION=7 (DYCOSS Discrete Crack Model). Measurements were done at UC Berkeley - Mechanical Engineering Department. The measured impact speed is 4758 in/sec. The measured exit speed is 4133 in/sec.
|
| Status: | Accepted and currently part of the AWG Test Suite
|
| Classification: | Validation
|
| Input Deck: | Test Case 7 Input
|
| Keywords: | *MAT_COMPOSITE_DMG_MSC
|
| | *CONTACT_AUTOMATIC_SURFACE_TO_SURFACE_TIEBREAK
|
| | *CONTACT_ERODING_SINGLE_SURFACE_ID
|
| | ...
|
| Units: | in (length), s (time), lbf-s2/in (mass), psi (stress), lbf-in (energy)
|
| Model Data: | 61448 solids, 17 solid matyerials / 17 parts
|
| Run Time: | approx. total CPU time = 30 minutes 14 seconds (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 4 cpu's)
|
| Earliest Version : | LS-DYNA® R4.2.1
|
