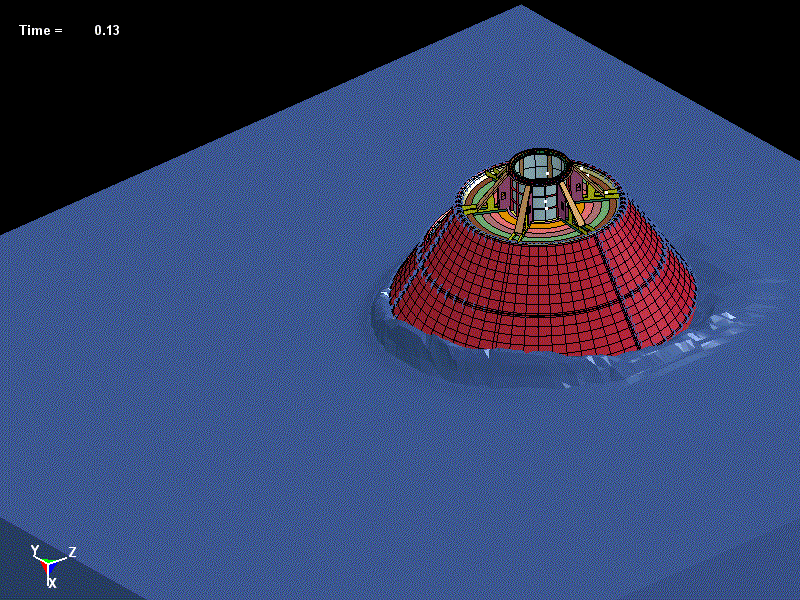

Description: | Water landing is the loading design case for a sub-structure of the Orion spacecraft. An ALE approach is used to simulate the water impact. Concern over relying on un-verified analysis and the significant sensitivity to input parameters led to a water drop test program at NASA Engineering Safety Center (NESC) to validate LS-DYNA® simulations. This test case is derived from this investigation.
|
Status: | Accepted and currently part of the AWG Test Suite
|
Classification: | Validation
|
Input Deck: | Test Case 8 Input
|
Input Deck 02/09/2012 Update: | An enhanced model was obtained from NASA.
|
Keywords: | *CONTROL_ALE
|
| *INITIAL_VOID_PART
|
| *MAT_SPRING_GENERAL_NONLINEAR
|
| *CONSTRAINED_LAGRANGE_IN_SOLID
|
| *CONSTRAINED_NODAL_RIGID_BODY
|
| *CONSTRAINED_INTERPOLATION
|
| *CONSTRAINED_NODAL_RIGID_BODY
|
| *CONSTRAINED_RIGID_BODY
|
| *CONSTRAINED_SPOTWELD
|
| *CONTACT_AUTOMATIC_SURFACE_TO_SURFACE
|
| *CONTACT_NODES_TO_SURFACE
|
| *CONTACT_TIED_NODES_TO_SURFACE
|
| ...
|
Units: | n/a
|
Model Data: | n/a
|
Run Time: | approx. total CPU time = 1 hour 58 minutes 29 seconds (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 4 cpu's)
|
Earliest Version : | LS-DYNA® R5.1.1
|
Test Case Details and Results: | Test Case 8, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c
|
| Test Case 8, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d
|
| Test Case 8, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac
|
| Test Case 8, Documentation and Results for LS-DYNA R13.1 Revision 93-g6e31b592d7
|
| Test Case 8, Documentation and Results for LS-DYNA R13.0 Revision 365-gf8a97bda2a
|
| Test Case 8, Documentation and Results for LS-DYNA R12.1 Revision 128-g57c3366e82
|
| Test Case 8, Documentation and Results for LS-DYNA R12.0 Revision 148708
|
| Test Case 8, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4
|
| Test Case 8, Documentation and Results for LS-DYNA R11.1 Revision 139747
|
| Test Case 8, Documentation and Results for LS-DYNA R10.2 Revision 134743
|
| Test Case 8, Documentation and Results for LS-DYNA R11.0 Revision 130010
|
| Test Case 8, Documentation and Results for LS-DYNA R9.3 Revision 126955
|
| Test Case 8, Documentation and Results for LS-DYNA R10.1 Revision 123136
|
| Test Case 8, Documentation and Results for LS-DYNA R9.2 Revision 118235
|
| Test Case 8, Documentation and Results for LS-DYNA R10.0 Revision 116539
|
| Test Case 8, Documentation and Results for LS-DYNA R9.1 Revision 113467
|
| Test Case 8, Documentation and Results for LS-DYNA R9.0 Revision 108899
|
| Test Case 8, Documentation and Results for LS-DYNA R8.0.0 Revision 96167
|
| Test Case 8, Documentation and Results for LS-DYNA R7.1.0 Revision 87770
|
Bug Issues Found and Fixed: | Bug 15914: error termination in MPP due to a PGI compiler bug that was fixed in R11 Revision 139742
|
