| Image: |
|

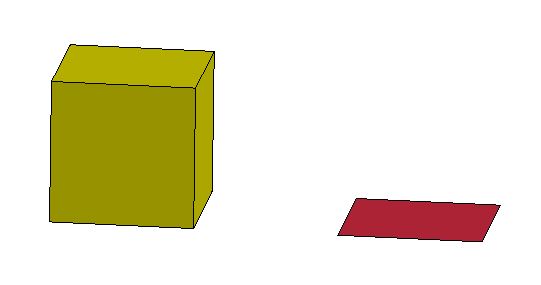

| Description: | Using *MAT_224, one shell element and one solid element are loaded in uni-axial compression. The temperature is initialized to 500 degrees F using history variable 10 for the shell element and history variable 14 for the solid element. Two subcases are defined with beta, the fraction of plastic work converted to heat, set to 1.0 in one subcase and set to a very small number (1.0E-6) in the other subcase.
|
| Status: | Accepted and currently part of the AWG Test Suite
|
| Classification: | Verification
|
| Input Deck: | Test Case 17 Input
|
| Keywords: | *MAT_224
|
| | *INITIAL_STRESS
|
| Units: | in (length), s (time), lbf-s2/in (mass), psi (stress), degrees F (temperature)
|
| Model Data: | 12 nodes / 1 solid element / 1 shell element / 1 material / 2 parts
|
| Run Time: | approx. total CPU time = 5 seconds (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 1 cpu's)
|
| Earliest Version: | LS-DYNA® R10.0
|
| Test Case Details and Results: | Test Case 17, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c
|
| | Test Case 17, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d
|
| | Test Case 17, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac
|
| | Test Case 17, Documentation and Results for LS-DYNA R13.1 Revision 98-gf37f544487
|
| | Test Case 17, Documentation and Results for LS-DYNA R13.0 Revision 368-g6a82ba3777
|
| | Test Case 17, Documentation and Results for LS-DYNA R12.1 Revision 204-g810450fa20
|
| | Test Case 17, Documentation and Results for LS-DYNA R12.0 Revision 148708
|
| | Test Case 17, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4
|
| | Test Case 17, Documentation and Results for LS-DYNA R11.1 Revision 139325
|
| | Test Case 17, Documentation and Results for LS-DYNA R10.2 Revision 134743
|
| | Test Case 17, Documentation and Results for LS-DYNA R11.0 Revision 130010
|
| | Test Case 17, Documentation and Results for LS-DYNA R9.3 Revision 126955
|
| Bug Issues Found and Fixed: | None
|
