AWG ERIF Test Case 10: MAT_224 Dynamic Punch Test Aluminium 2024

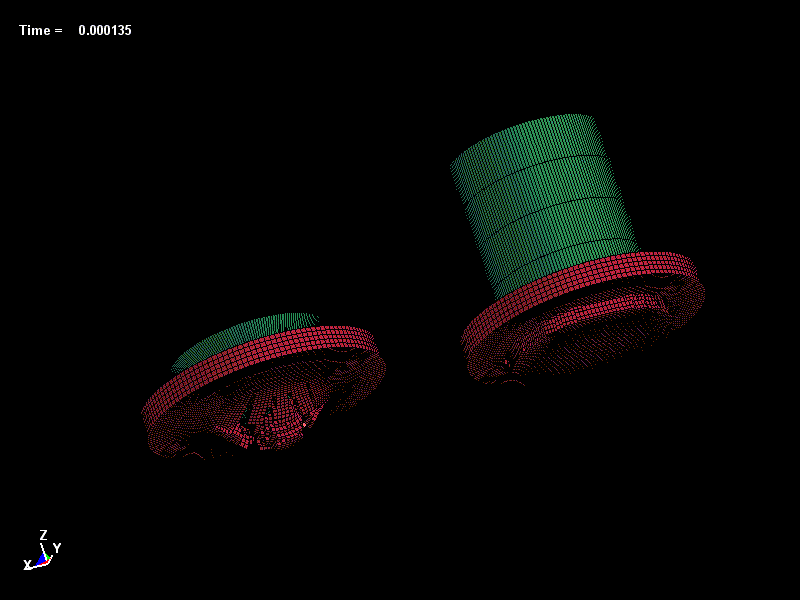

| Image: | | |

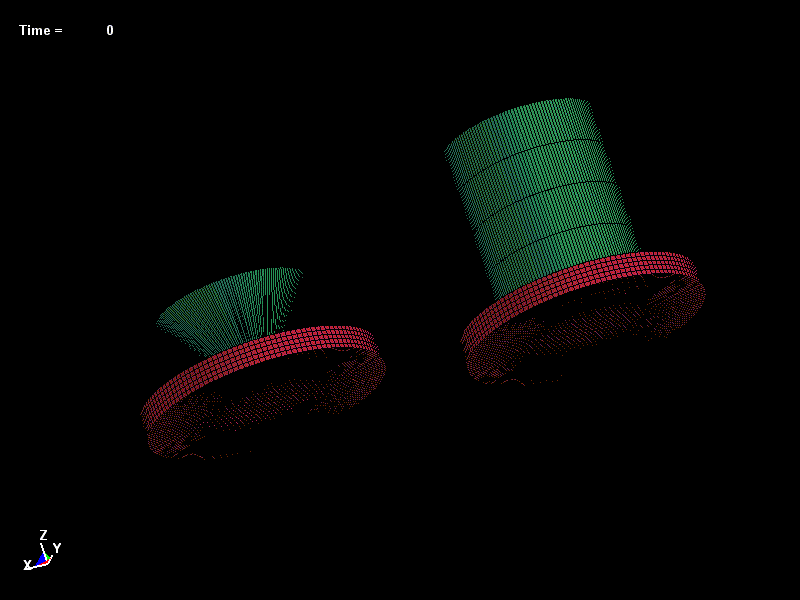

| Animation: | Test Case 10 Animation | |
| Description: | Dynamic punch tests of Aluminium 2024 using MAT_224 (*MAT_TABULATED_JOHNSON_COOK). Controlled dynamic testing is performed on a Split Hopkinson Bar (SHB) to examine failure of Aluminium 2024. Dynamic punch testing at 20 m/s using the two punch shapes shown on a circular sample with D=14.56 mm and t=1.456 mm (10%). | |
|

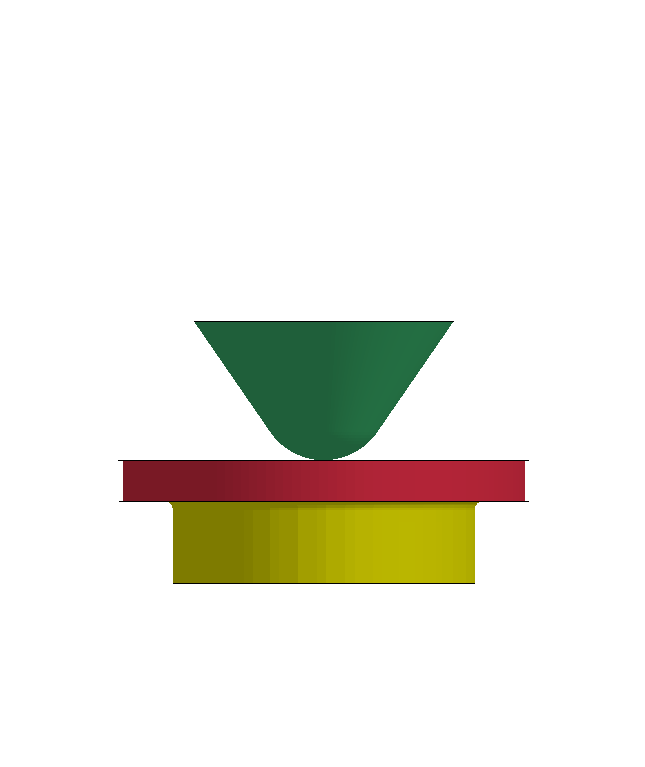

Punch 1
|

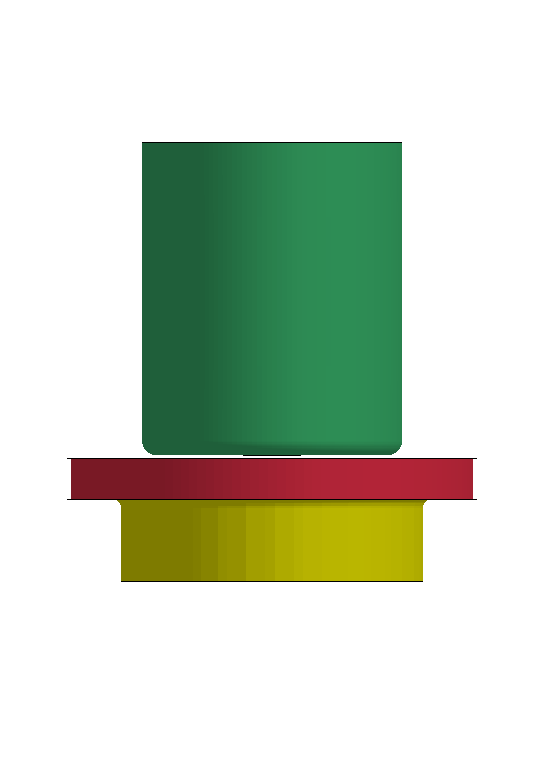

Punch 2
| |
| Status: | Accepted and currently part of the AWG Test Suite | |
| Classification: | Example | |
| Reference Reports: | Aluminum 2024 Tests | |
| Cylindrical Projectile Penetration | ||
| Impact Testing for Material Model Development | ||
| Plastic Deformation and Ductile Fracture under Various Loads | ||
| Input Deck: | Test Case 10 Input | |
| Input Deck 12/07/2020 Update: | Aluminum 2024 material model updated to Version 2.2 | |
| Keywords: | *MAT_TABULATED_JOHNSON_COOK | |
| Units: | mm (length), sec. (time), tonne (mass), N/mm2 (stress), N-mm (energy) | |
| Model Data: | pch1_mod.k: 32882 Nodes, 3970 shell elements / 3 shell material, 23625 solid elements / 1 solid material, 4 parts | |
| pch6_mod.k: 34544 Nodes, 5598 shell elements / 3 shell material, 23625 solid elements / 1 solid material, 4 parts | ||
| Run Time: | pch1_mod.k : approx. total CPU time = 1 hours 13 min. 40 sec. (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 4 cpu's) | |
| pch6_mod.k : approx. total CPU time = 0 hours 8 min. 47 sec. (Intel® Xeon® CPU E7- 8837 @ 2.67GHz / MPP / 4 cpu's) | ||
| Earliest Version : | LS-DYNA® R5.1 | |
| Test Case Details and Results | ||
| Test Case 10, Documentation and Results for LS-DYNA R16.0-563-g2adec5a05 | ||
| Test Case 10, Documentation and Results for LS-DYNA R14.1.1-8-g2ef819c24f | ||
| Test Case 10, Documentation and Results for LS-DYNA R13.2-28-gcc52f96e9d | ||
| Test Case 10, Documentation and Results for LS-DYNA R14.1.1-4-gaf1eb871e8 | ||
| Test Case 10, Documentation and Results for LS-DYNA R12.2-223-gcef54b474c | ||
| Test Case 10, Documentation and Results for LS-DYNA R14.1-7-gea5f83301c | ||
| Test Case 10, Documentation and Results for LS-DYNA R12.2 Revision 1-g2dd504fe3d | ||
| Test Case 10, Documentation and Results for LS-DYNA R14.0 Revision 461-gee93a457ac | ||
| Test Case 10, Documentation and Results for LS-DYNA R13.1 Revision 93-g6e31b592d7 | ||
| Test Case 10, Documentation and Results for LS-DYNA R13.0 Revision 365-gf8a97bda2a | ||
| Test Case 10, Documentation and Results for LS-DYNA R12.1 Revision 128-g57c3366e82 | ||
| Test Case 10, Documentation and Results for LS-DYNA R12.0 Revision 148708 | ||
| Test Case 10, Documentation and Results for LS-DYNA R11.2 Revision 51-g7e1aee4 | ||
| Bug Issues Found and Fixed: | BUG 16376: error termination with floating invalid in f3dm224 (MAT_224 Version 2.2 for aluminum material model) was fixed in revisions R11-143806, R12-143804, and Dev-143804 | |
Test Case 10 History: 03/14/2019 Update
| Input Deck: | Test Case 10 | |
| Input Deck Updates: | Aluminum 2024 material model updated to Version 2.1 | |
| Test Case Details and Results: | Test Case 10, Documentation and Results for LS-DYNA R11.1 Revision 139325 | |
| Test Case 10, Documentation and Results for LS-DYNA R10.2 Revision 13473 | ||
| Bug Issues Found and Fixed: | None | |
Test Case 10 History: 11/06/2018 Update
| Input Deck: | Test Case 10 | |
| Input Deck Updates: | Aluminum 2024 material model updated to Version 2.0 | |
| Test Case Details and Results: | Test Case 10, Documentation and Results for LS-DYNA 11.0 Revision 130010 | |
| Bug Issues Found and Fixed: | None | |
Test Case 10 History: 09/05/2012 Update
Test Case 10 History: 02/12/2012 Update
| Input Deck: | Test Case 10 | |
| Input Deck Updates: | MAT_TABULATED_JOHNSON_COOK material model updated. | |
| Test Case Details and Results: | Test Case 10, Documentation and Results for LS-DYNA R6.1 Revision 74159 | |
| Test Case 10, Documentation and Results for LS-DYNA R6 Revision 71731 | ||
| Bug Issues Found and Fixed: | None | |
Test Case 10 History: 07/27/2011 Original Input Deck
| Input Deck: | Test Case 10 | |
| Test Case Details and Results: | Test Case 10, Documentation and Results for LS-DYNA R5.1.1 Revision 67628 | |
| Bug Issues Found and Fixed: | Bug 4594: Error termination punch model after switch contact option soft=1 to soft =2, fixed in R5.1_66695. | |
